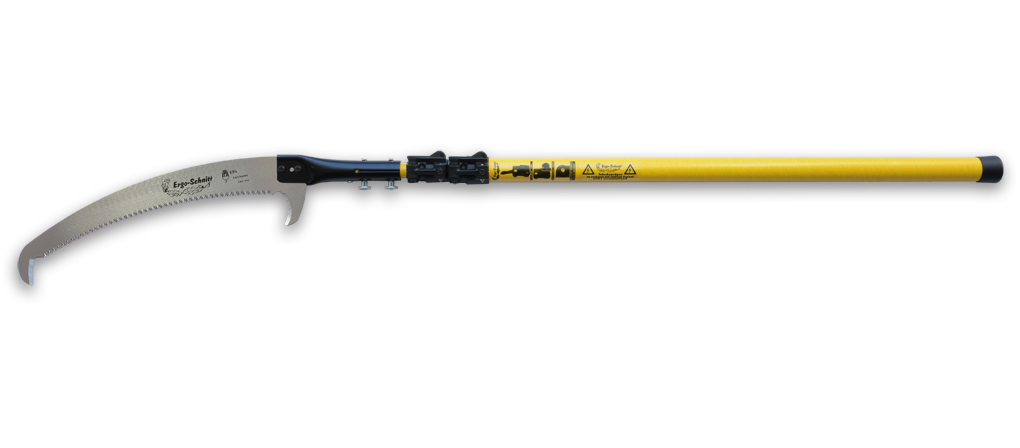

Telescopic saws

ERS233 g

match products (Telescopic saws)

Saw blade without adapter

The Ergo-Schnitt telescopic rods are made from glass fibre braid (GFB) covered with a layer of resin. The material offers 5 x higher resistance against breaking compared with aluminium. No corrosion occurs to the GFB and it is very low wear-and-tear. GFB does not conduct electricity when it is clean and dry. This has been confirmed and certified by an accredited inspection laboratory. Ergo-Schnitt telescopic bars can be steplessly set to any height. A tensile strength of 75 kg is attained via an eccentric lever which can be set with the opposite nut (left-handed thread). The saw blade is made from time-proven Japanese SK5 steel. The rows of teeth are induction hardened and every fifth tooth has a special position so that the dust is removed from the cut more easily. Medium tooth width of 4 mm (0.16 in) (8 teeth on 30 mm (1.18 in)) for universal use in fresh, soft, hard and dry wood. Incl. saw blade protector.

Product features:

Item number:	Article:	Length:	Weight:
ERS233	Telescopic saw 233, 3-piece	1,48 m - 2,63 m, 1.62 yd - 2.88 yd	1661 gram, 58.59 oz
ERS340	Telescopic saw 340, 2-piece	2,33 m - 3,78 m, 2.55 yd - 4.13 yd	1766 gram, 62.29 oz
ERS490	Telescopic saw 490, 3-piece	2,33 m - 5,16 m, 2.55 yd - 5.64 yd	2570 gram, 90.,65 oz
ERS630	Telescopic saw 630, 4-piece	2,33 m - 6,46 m, 2.55 yd - 7.06 yd	3530 gram, 124.52 oz
ERS8000	Telescopic saw 8000, 5-piece	2,38 m - 7,86 m, 2.60 yd - 8.60 yd	4405 gram, 155.38 oz
ERS9600	Telescopic saw 9600, 6-piece	2,48 m - 9,63 m, 2.71 yd - 10.53 yd	6100 gram, 215.17 oz

Test reports: Result of the leakage current measurement:

Item number	Shock amplitude	Metering voltage [kV]	Leakage current [µA]
ERS233*	1140	147,6	158,30
ERS340*	1630	147,6	123,70
ERS490*	3050	147,6	81,70
ERS630*	4540	147,6	75,40
ERS8000**	5580	147,6	5,40
ERS9600**	7400	147,6	0,72

Scope of application:

- municipal
- gardening and landscaping work
- orcharding
- viticulture
- gardener
- forest

*Excerpt from a test report of an accredited laboratory in accordance with IEC 60060-1:1989 reffering to DIN VDE 0681 part 1: 1986-10.

** Expert from a test report of an accredited laboratory in accordance with IEC 60060-1:2010 reffering to DIN VDE 0681 part 1: 1986-10, ch. 4.8.2.

The complete reports are on hand.
